TC Wafer Wafer Temperature Measurement System

Product Introduction

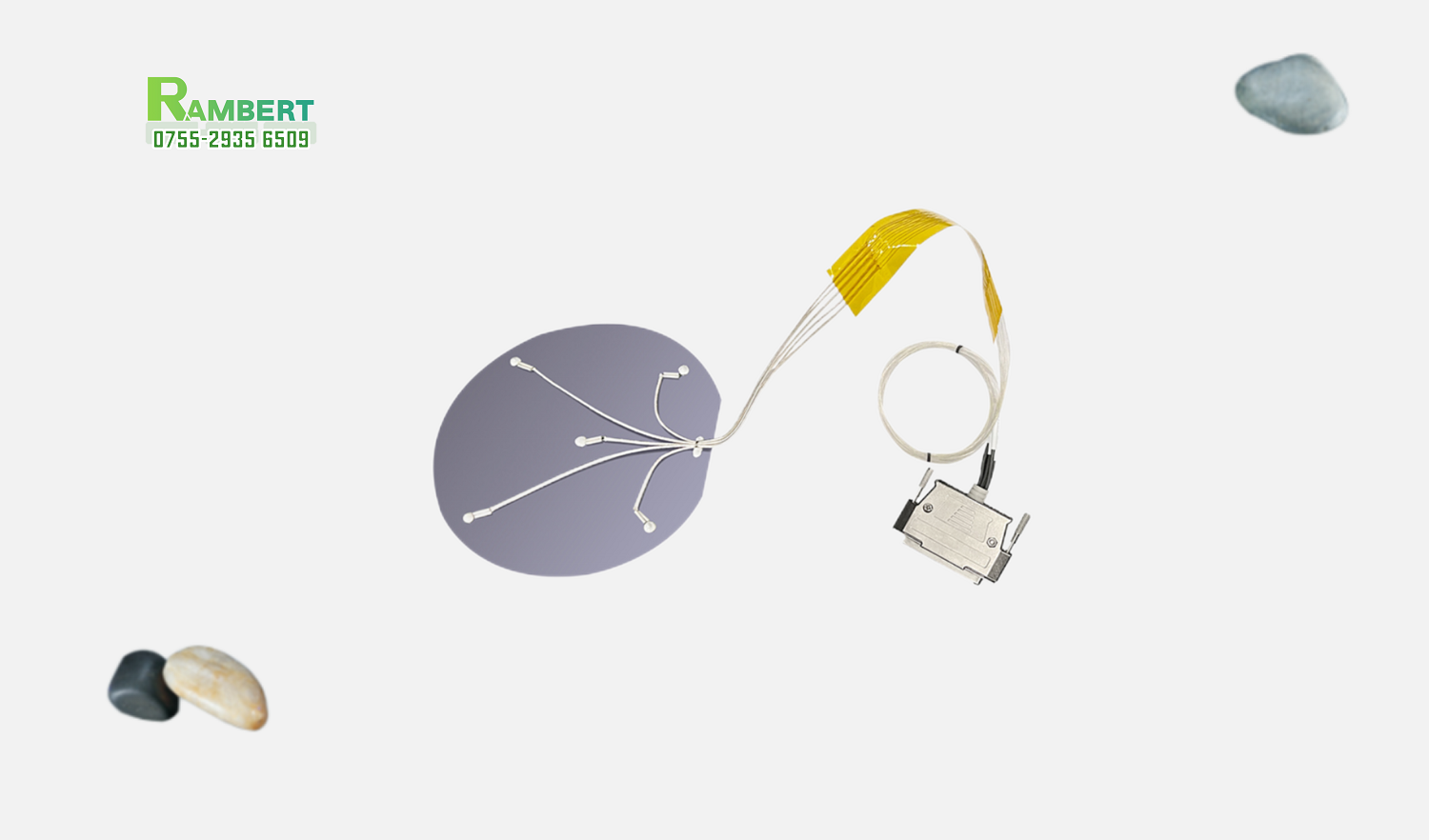

The TC Wafer Wafer Temperature Measurement System embeds high-temperature resistant thermocouple sensors on the wafer surface using independently developed core technologies, enabling real-time monitoring and recording of temperature change data during the wafer manufacturing process. It provides an efficient and reliable method for monitoring and optimizing key process parameters in semiconductor manufacturing.

Online consulting QQ online consultation phone：0755-29356509

Introducción del producto

Physical Vapor Deposition (PVD), Atomic Layer Deposition (ALD), Chemical Vapor Deposition (CVD), Annealing Furnaces, De-ashing Equipment, Wafer Temporary Bonding, Coating & Development TRACK Equipment, Heating Plates, Heating Disks

Product Advantages

1、1200℃ High-temperature Resistance: The thermocouple sensor can withstand temperatures up to 1200℃, making TC Wafer suitable for monitoring semiconductor manufacturing processes under extreme temperature conditions.
3、Precise Real-time Temperature Monitoring: Provides accurate temperature data for specific positions on the wafer.
4、Detailed Temperature Distribution Map: By collecting temperature data from multiple points on the wafer, it offers a comprehensive temperature distribution to help identify uneven heating or cooling issues.
5、Transient Temperature Tracking: Captures rapid temperature dynamics, such as key parameter changes in heating, cooling, isothermal processes, and delay times, providing data support for process optimization.
6、Supports Process Control and Optimization: Continuous monitoring of temperature changes during wafer heat treatment helps engineers adjust process parameters, improving production efficiency and ensuring product quality.
7、Compatible with Multiple Wafer Sizes: Designed to accommodate different wafer diameters, including 2-inch up to 12-inch wafers, meeting various manufacturing needs.

Product Parameters

Wafer Size	2", 3", 4", 6", 8", 12"	Wafer Material	Silicon Wafer/Sapphire, etc.
Number of Temperature Measurement Points	1-34	Wire Length	L1-Internal Cavity; L2-Chamber Door Transition Section; L3-External Cavity
Temperature Sensing Element	TC	Sampling Frequency	1Hz
TC Wire Diameter	0.127mm/0.254mm	Supporting Host	Temperature Measurement System Host
Temperature Range	K-type: RT~1200°C; R/S-type: RT~1200°C; T-type: RT~350°C; TR High-precision Type: -40-250°C / -40-350°C
Temperature Accuracy	K-type: +1.1°C/0.4%; R/S-type: ±0.6°C/0.1%; T-type: 0.5°C; TR High-precision Type: 0.1°C/+0.5°C
Temperature Measurement Software	Specialized software for real-time display of temperature field profiles and heating curves
